Project Description

DIN EN853 H1SN(+150°C)

Wire braided reinforced hoses for low-medium pressure lines and return lines.High tensile steel braid.

Tube:  Neoprene.

Reinforcement:One braid of high-tensile steel wire.

Cover:Blue Sythetic Rubber.

Temp. Range:-40°C to+150°C

Applicable Standards:EN853 1SN,GB/T3683.1 1SN,SAE J517 R1S,ISO 1436 1SN

Contact Now

Wire braided reinforced hoses for low-medium pressure lines and return lines.High tensile steel braid.

Application:

Medium pressure hydraulic oil lines used in mobile,machine tool and agricultural application where higher temperature petroleum-or water based hydraulic fluids are a factor.

Tube:  Neoprene.

Reinforcement:One braid of high-tensile steel wire.

Cover:Blue Sythetic Rubber.

Temp. Range:              -40°C to+150°C

Applicable Standards:EN853 1SN,GB/T3683.1 1SN,SAE J517 R1S,ISO 1436 1SN

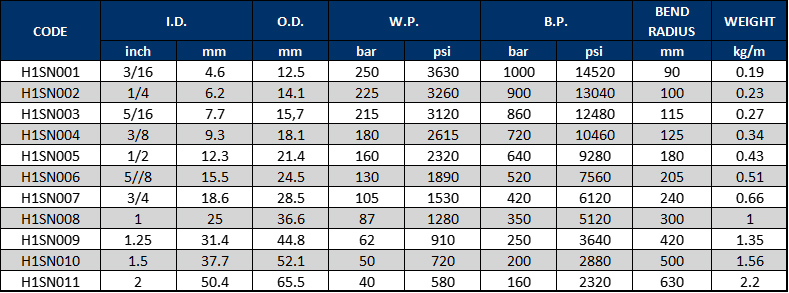

EN853 H1SN SPECS

Rubber hose packing: Plastic film,Woven bag, Pallet,etc.

Customerized package is supported.
